Description
Product Details:

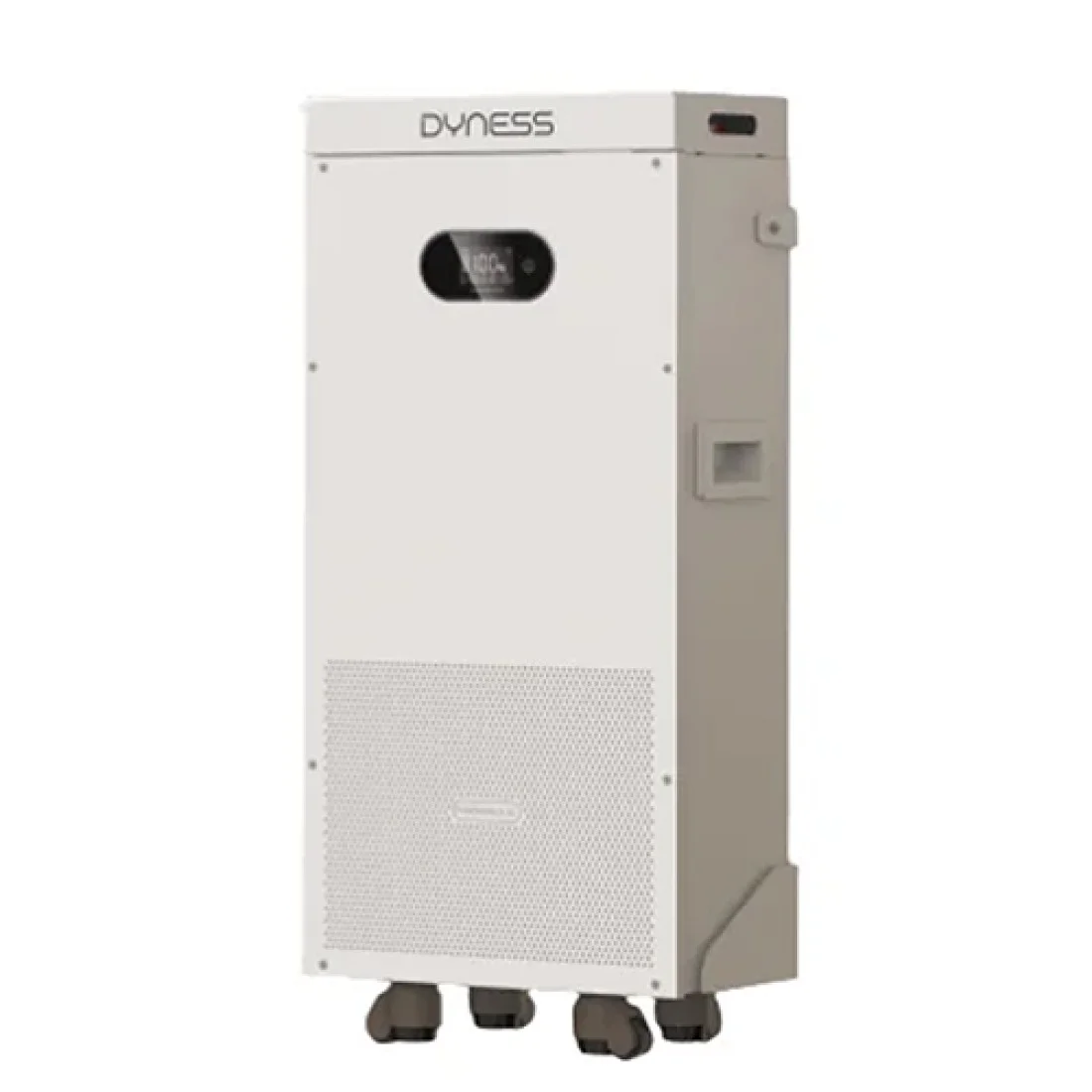

The Dyness PowerBrick SC is a high-capacity, low-voltage 16.076 kWh lithium iron phosphate (LiFePO4) solar battery designed for residential and small commercial energy storage. Built around high-capacity 314 Ah cells, it is a highly scalable solution engineered to provide deep, reliable backup power.
Features:
- Nominal Energy Capacity: 16.076 kWh
- Usable Energy Capacity: 15.272 kWh (95% Depth of Discharge)
- Nominal Voltage & Capacity: 51.2V / 314Ah
- Lifespan: ≥8,000 cycles with a 10-year warranty
- Charging/Discharging Power: 7.168 kW (Recommended) / 10.24 kW (Maximum)
- Maximum Output Current: 200A max continuous / 300A peak (for 2 minutes)
- Dimensions & Weight: 435 × 233 × 857 mm | 116 kg
- Enclosure Protection: IP20 rating (designed primarily for indoor installation)
Documents:
Dyness PowerBrick SC 16.07kWh IP20 Lithium ion Battery 51.2V – 314Ah (With LCD) Datasheet.pdf
