Description
Overview:
Go to the “BUY NOW” button and have it at your doorstep.

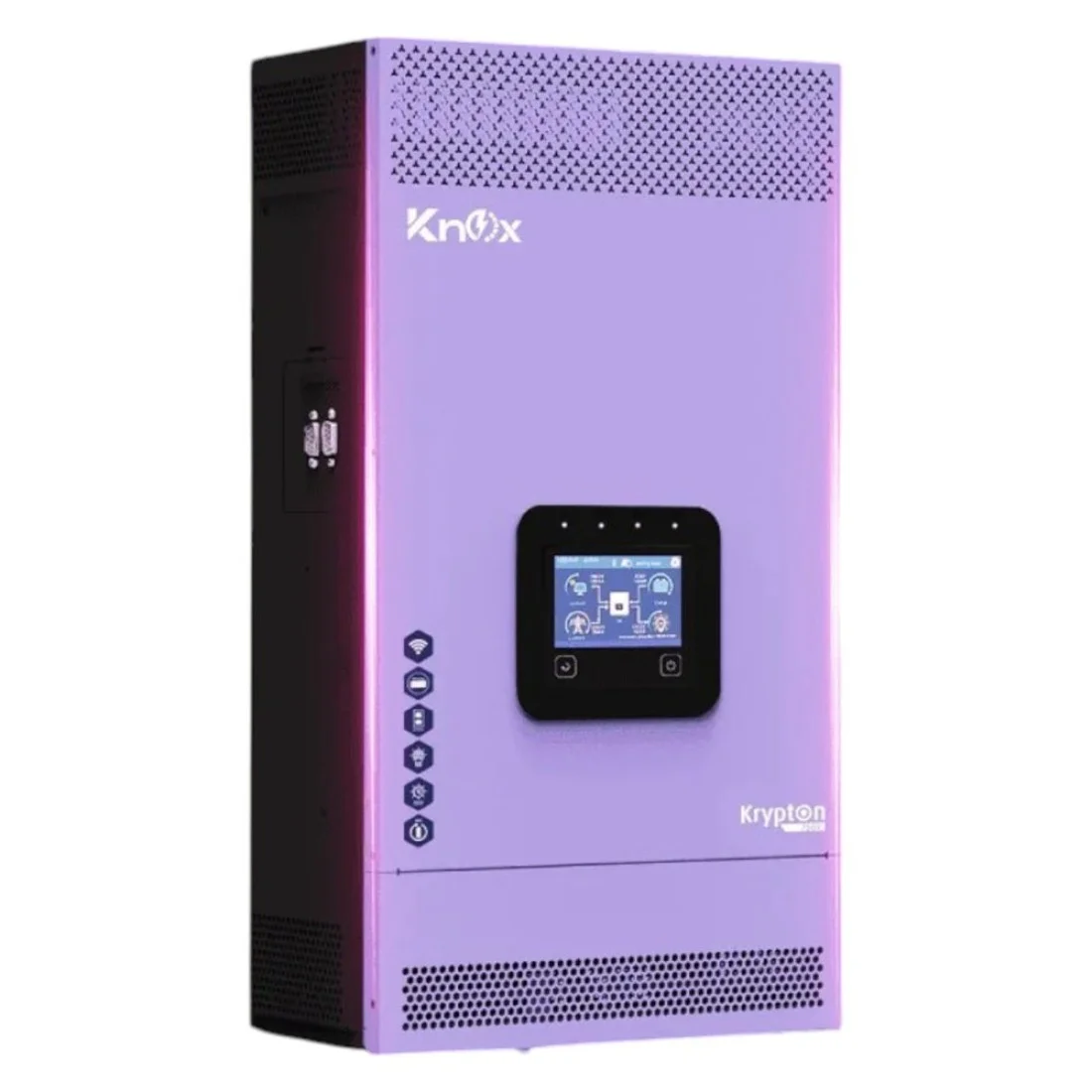

Explore Solar Company Lahore to find the latest “Knox Krypton 7502 5.5KW Hybrid Solar Inverter With PV 7500W” products and other electronic components at discounted prices in Pakistan with cash-on-delivery service available throughout the
country.
Features
- Built-In WiFi: Enables real-time monitoring and control through a dedicated mobile app, offering convenience and insights into system performance.
- Durable IP21 Rated Protection: Engineered to withstand environmental factors, ensuring long-lasting durability.
- Dual Output Design: Separates smart loads from heavy loads for optimized power distribution and efficiency.
- Grid-Tied Solar Integration: Allows seamless connection to the grid, enhancing energy utilization and enabling net metering options.
- Battery-Less Operation: Operates without the need for batteries, reducing costs and complexity while still supporting energy independence.
- Battery Management System (BMS): Extends battery life and optimizes performance when used with batteries, ensuring intelligent charging and discharging cycles.
Documents:
Knox Krypton 7502 5.5KW Hybrid Solar Inverter With PV 7500W Datasheet.pdf
| HARDWARE FEATURES | |
| Efficiency | 95% |
| Output Voltage Range | 184 – 264.5 VAC or 195.5 – 253 VAC (Selectable) |
| TECHNICAL SPECIFICATION | |
| Start-up Voltage | 120VDC |
| General Specification | |
| Feeding Capacity | 150 VDC |
| Maximum PV Input Power | 7500W |
| MPP voltage range | 120 VDC ~ 430 VDC |
| Nominal Output Powe | 18 A |
| Nominal Output Voltage | 220/230/240 VAC |
| Number of MPPT | 2 / 27A (MAX 40A) |
| Phase | Single Phase |
| Power factor | > 0.99 |
| Rated Output Power | 5500W |
| Solar Panel Specification | |
| Nominal DC Voltage [V] | 360 VDC / 500 VDC |
