Product Details:

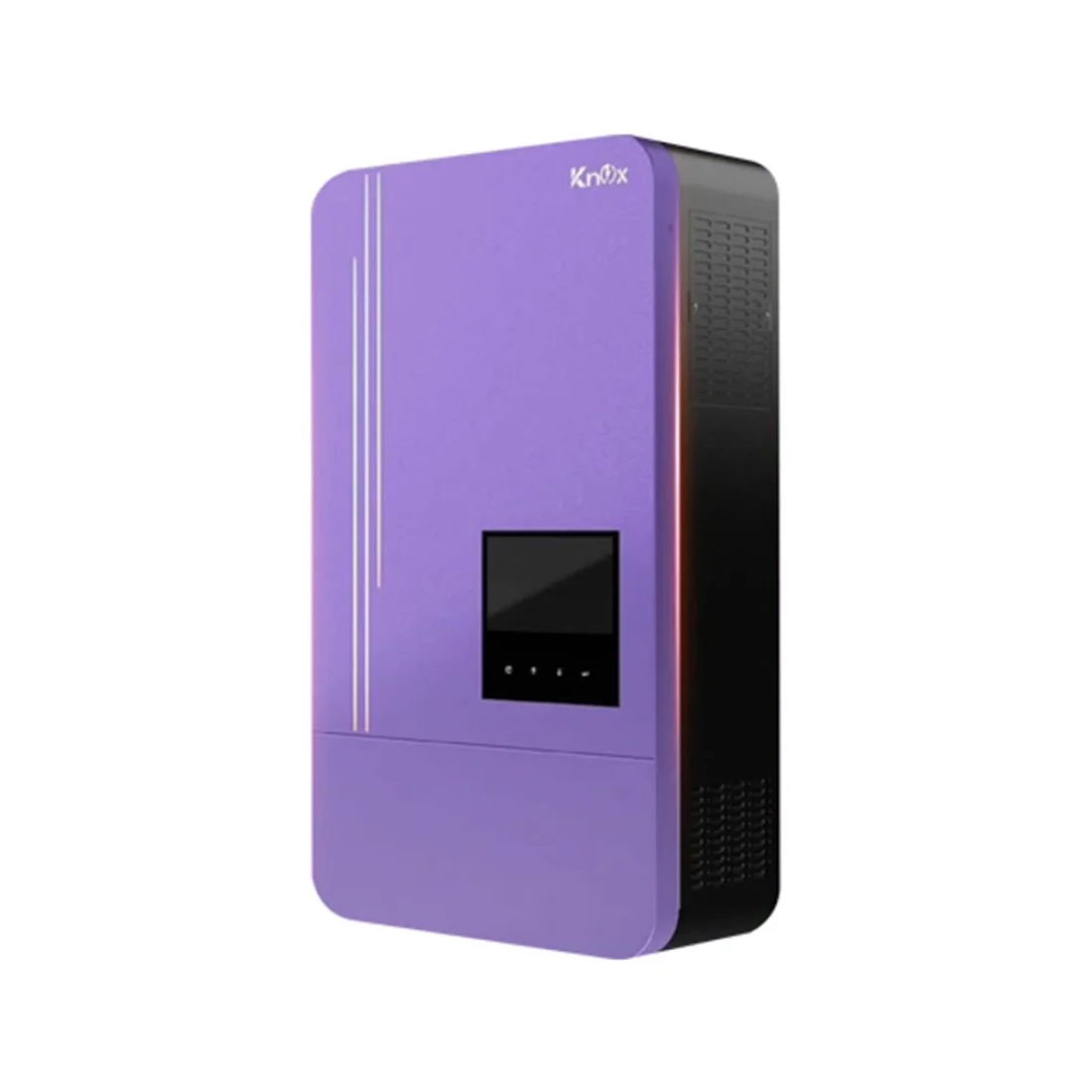

Knox Krypton 6.2KW PV9000 Hybrid Solar Inverter ready stock available at W11stop. Knox Krypton 9000 Hybrid Solar Inverter is a high-performance energy solution designed for residential and commercial solar systems in Pakistan. This inverter combines advanced features with robust specifications to ensure efficient energy conversion and reliable operation.
Features:
- Nominal Operating Voltage: 36Vdc
- Vmax PV: 500Vdc
- PV Input Voltage Range: 120-500Vdc
- Isc PV: 30A
- MPPT Voltage Range: 120~430Vdc
- Maximum PV Input Power: 9000W
- Nominal Output Current: 27A
- Operating Frequency: 50/60Hz
- Protection: IP21
Documents:
Knox Krypton 6.2kW PV 9000 Watt Hybrid Solar Inverter Datasheet.pdf
| Summary | |
| Voltage range | 120~430Vdc |
| Output Current | 27A |
| HARDWARE FEATURES | |
| Input Power | 9000W |
| Input Voltage Range | 120-500Vdc |
| Operating Voltage | 36Vdc |
| TECHNICAL SPECIFICATION | |
| Operating Frequency | 50/60Hz |
| General Specification | |
| Battery | 142A |
| Protection | IP21 |
| Battery Rated Voltage | 48Vdc |
